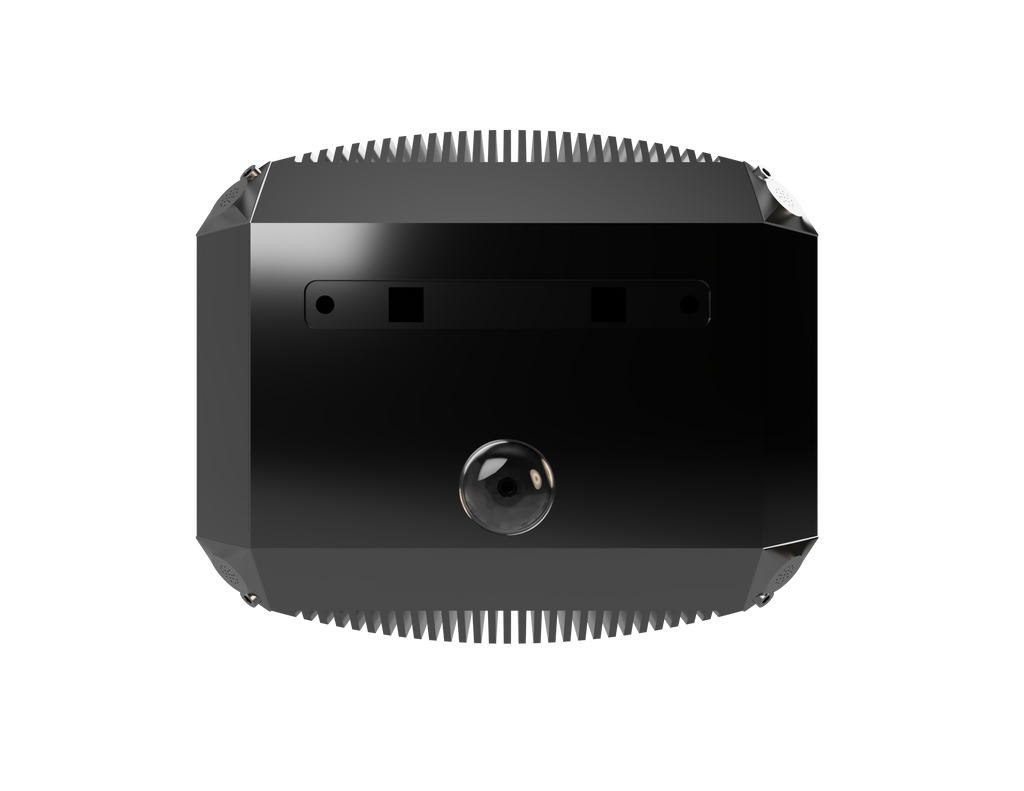

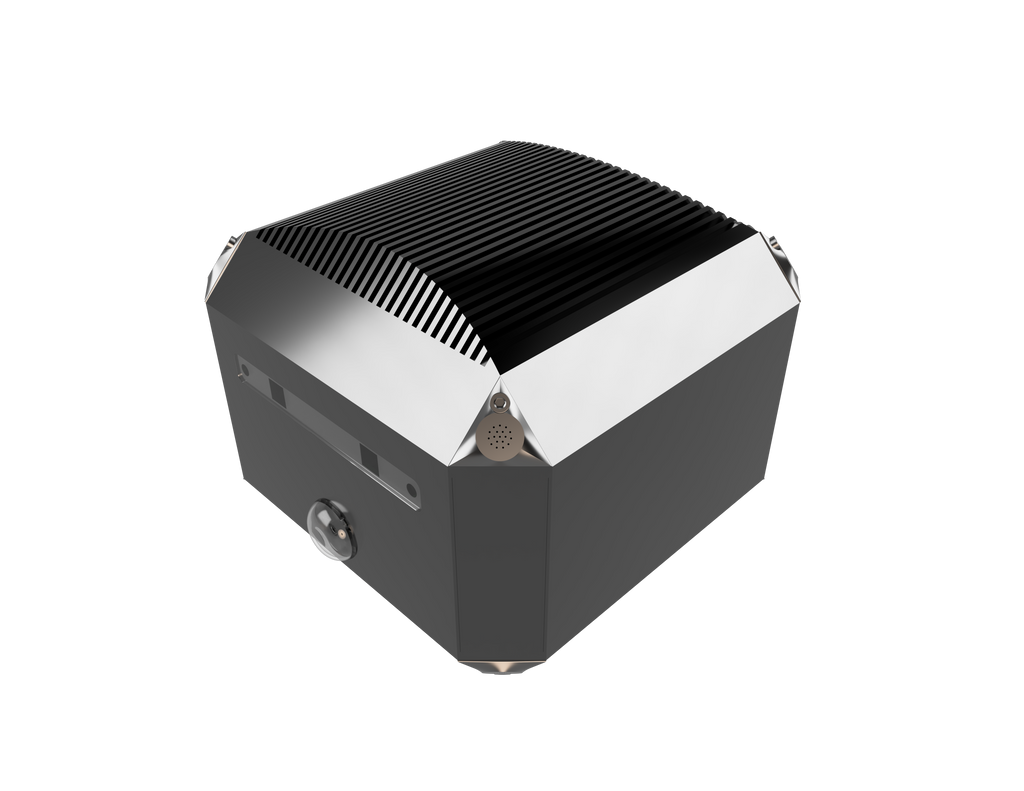

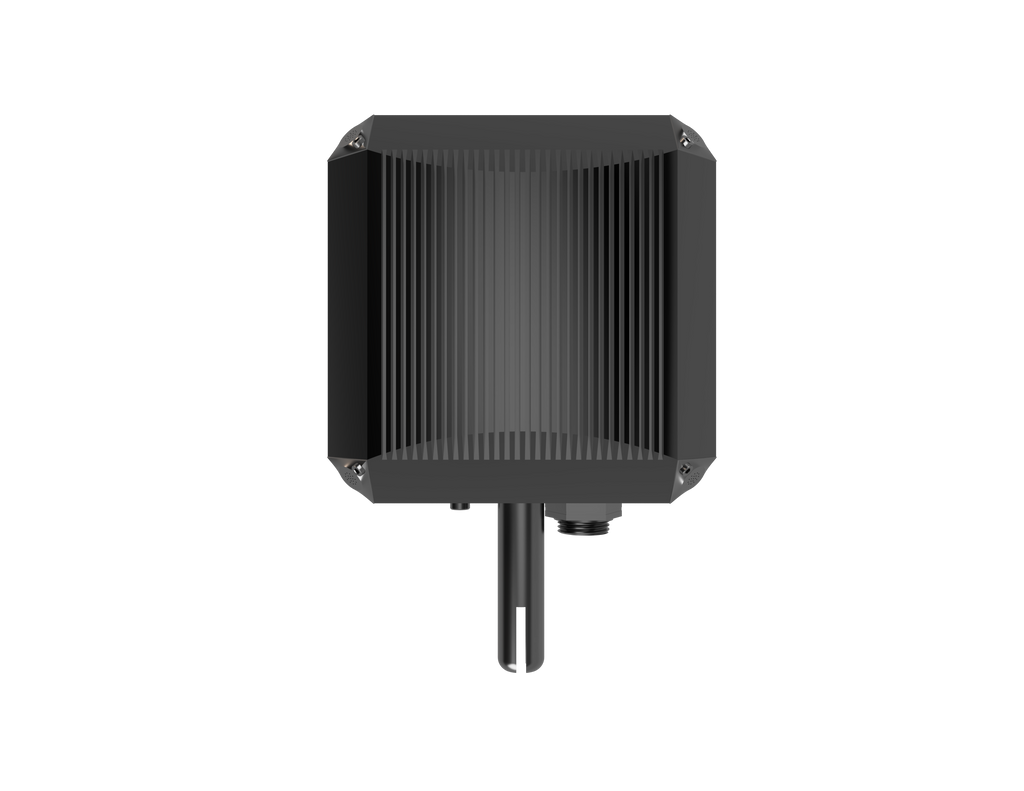

marinePMD

marinePMD - the Predictive Maintenance Device that provides autonomous monitoring and anomaly detection of the engine room on Your yacht.

FEATURES

• All-in-one design, integrating: Nvidia Jetson with 8-channel audio streamer, video cameras, PLC RS485/NMEA2000, LTE/5G router, LoRa router / transmitter options, Out-of-Band management GSM module and accessory sensor boards;
• Multi-pipeline design: dedicated Machine Vision and Machine Audio autonomous, self-learning edgeServer runtime pipelines that detect anomalies and raise alerts ahead of time;
• User-friendly interface for anomaly classification labeling and configuration (on edge and cloud);
• Heavy-duty passive cooled design, silent operation;
• IP67 rated, outdoor use in harsh environments;
• Lifetime warranty with marine.audiopmd.com subscription plan;

SPECIFICATIONS

• Marine grade Aluminium 6061, anodized black;
• Stainless steel, ABS, sealed IP67 connectors: NMEA2000, DC24V, 2x SMA, ETH (w. PoE in/out options);
• Nvidia Jetson NX16GB;
• SSD 1TB NVMe;
• 5G / LTE and private network LoRa router;
• 24/12V DC-DC converter (15-40V input);
• 12/5V DC-DC converter;
• ISO1050 galvanic isolator for CAN (NMEA2000 port);

EBMEDDED SENSORS & ACCESSORIES

• 8x microphone MEMS modules (IP67 membranes embedded);
• 2x front CSI 4k cameras with IR diodes (thermal/8k options);
• Gas sensor: MiCS-5524 (the IP67 protection is behind gas sensor);
• Gyro sensor - 6-axis smart low power Inertial Measurement Unit for high performance applications;
• Digital compass;
• Vibration sensor (I2C piezo-electric);
• Speaker

OPTIONS

• Nvidia Jetson AGX 64GB SoM;
• Remote backup Out-of-Band GSM module;
• GPS module (with additional antenna IP67 connector);

• Gas sensors: multi-gas detection capacity for specific environments;

• Thunderstorm (electro-magnetic discharge) sensor;
• External (not embedded) PoE and/or USB cameras

Advanced gas monitoring - 5-Gas Sensor:
Simultaneously monitors carbon monoxide, methane, ethanol, propane, butane, hydrogen, hydrogen sulfide, and ammonia - critical for complex industrial environments.

Standard embedded sensor is the MiCS-5524 - a robust MEMS sensor for indoor carbon monoxide and natural gas leakage detection; suitable also for indoor air quality monitoring; breath checker and early fire detection.

Detectable gases
• Carbon monoxide | CO | 1 –1000ppm
• Ethanol | C2H5OH | 10 –500ppm
• Hydrogen | H2 | 1 –1000ppm
• Ammonia | NH3 | 1 –500ppm
• Methane | CH4 | >1000ppm
